Large PCBA Handling
Stress-Free & Precise Pick-and-Place
Stress-Free Handling for Large PCBAs
High-precision pick-and-place for advanced server boards

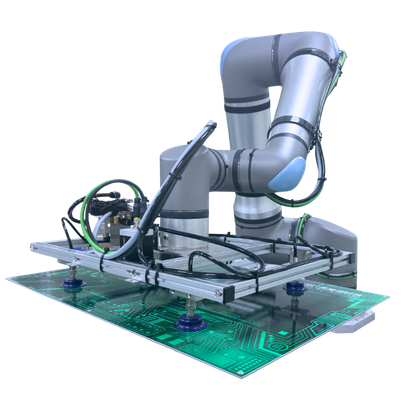

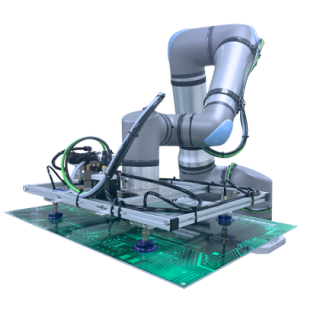

System Overview
Built for high-end AI servers. We integrate cobots, matrix vacuum grippers, and vision systems to minimize latency, ensure handling reliability, and safeguard manufacturing yields.
Common Production Challenges
-
Rigid Fixtures
Reliance on physical fixtures drives up costs and limits changeover agility. -
Stress Deflection
Uneven stress causes board deflection and micro-cracking, increasing scrap rates. -
System Silos
Lack of equipment communication causes latency and bottlenecks automation.
Solutions & Value
-

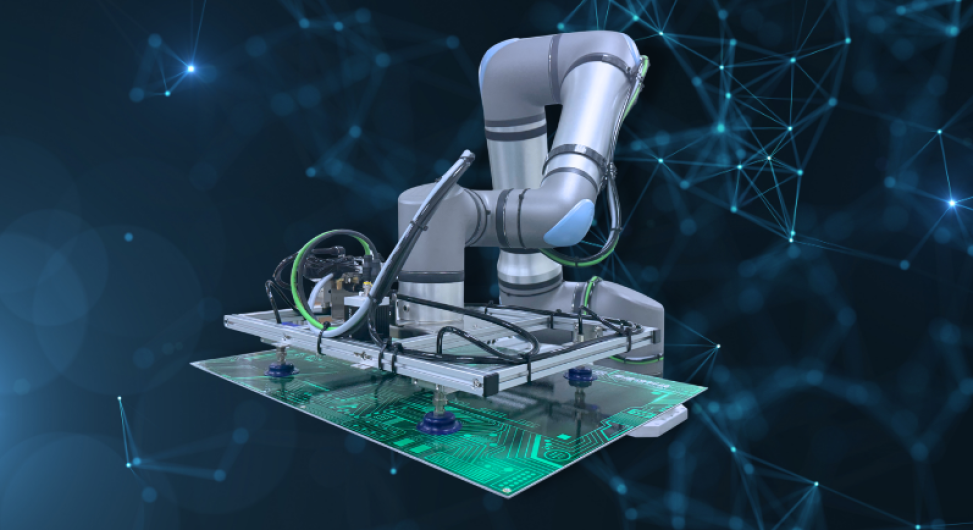

Matrix Gripping
Matrix vacuum arrays ensure uniform stress, eliminating deflection risks. -
Protocol Integration
Bridging protocols ensures real-time data flow for precise collaboration. -
Proactive Protection
Proactive load and anomaly detection strictly mitigate yield losses.
Technical Specifications

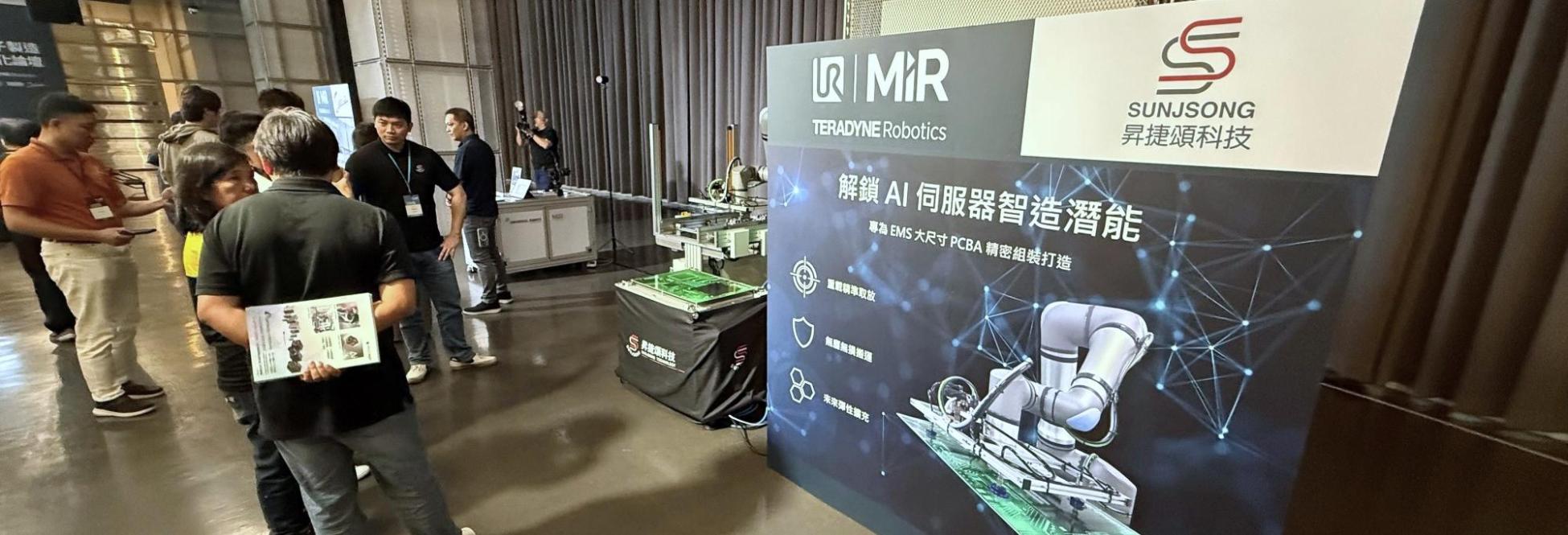

Exhibition & Proven Track Record
Invited to showcase professional large motherboard handling with UR cobots at the Electronics Forum.
Implementation Benefits
Zero-Damage Yield
Gripping and visual alignment eliminate bending risks, maximizing yield.
Maximized ROI
Scalable architecture eliminates expensive fixture costs, maximizing ROI.
Agile Changeovers
Vision guidance replaces physical fixtures, slashing changeover times.
Target Industries & Applications
-

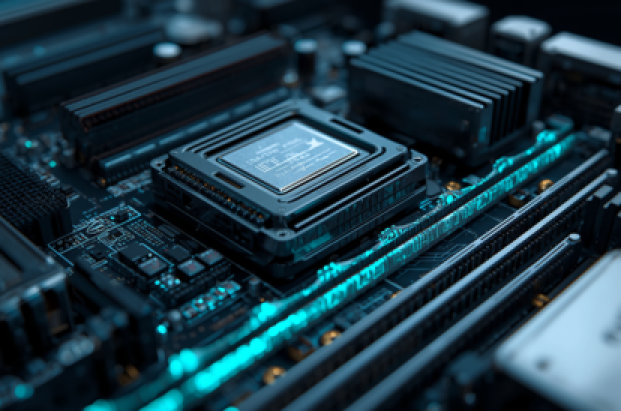

Smart Servers
Improves AI server board yields with stress-free handling. -
Automotive Electronics
Zero-damage handling meets stringent automotive standards. -
Test Boards
Stabilized vacuum protection secures high-value test boards.
-
Networking Infrastructure
Firm support for large switches ensures signal integrity. -
Green Energy
High-payload, stable handling for inverters and power modules. -
Medical Devices
Smooth handling aligns with premium medical assembly standards.
Initiate Reliability Upgrades
Break free from physical fixtures and eliminate deflection risks. Contact our automation experts for a site evaluation and tailored implementation plan.
