IPC-CFX SMT Integration
Product Model：IPC-2591 Real-time data exchange for SMT equipment improves efficiency.IPC-CFX Smart SMT Production Line
Product Introduction
Common Production Line Challenges
While traditional SMT lines are equipped with automated machinery, data flows remain fragmented. The lack of a unified system language leads to:
-
Inconsistent cross-equipment communication formats, hindering MES/ERP integration.
-
Inability to upload critical process data in real-time, compromising decision-making and traceability.
-
High deployment and maintenance costs due to the need for custom interfaces across different equipment brands.
-
Lack of plant-wide data visualization, preventing the realization of a closed-loop smart manufacturing system.
Solutions and Value
Implementing IPC-CFX enables the SMT line to report and receive information in real-time, achieving:
-
Real-Time Data Interoperability: Automatic feedback of production capacity, equipment status, and alarms, allowing MES to adjust strategies dynamically.
-
Intelligent Management: Integrating key equipment (AOI, SPI, Printer, Reflow, Mounter) using a unified language.
-
Comprehensive Traceability: Combining with the HERMES standard to transmit PCB serial numbers, batches, and routing data, ensuring board-level traceability.
-
Reduced Human Dependency: Automated reporting of part numbers, downtime, and maintenance status to minimize manual entry errors.
- Data-Driven Optimization: Real-time monitoring of yield rates and Overall Equipment Effectiveness (OEE) to drive smart decision-making.
CFX 2.0:Advanced Data Exchange Capabilities
CFX 2.0 represents an advanced evolution of the IPC-CFX standard. Building on existing equipment data exchange foundations, it further expands equipment types, message validation mechanisms, and factory-wide application support. Through more comprehensive data models and communication specifications, CFX 2.0 not only strengthens SMT line integration but also establishes a solid data foundation for factory logistics, smart scheduling, and future AI applications.
Key Upgrades in CFX 2.0
-
Expansion of Equipment Scope
Supporting more process equipment like DIP and Wave Soldering. -
Message Validation Mechanism
The system can verify equipment-supported topics, significantly enhancing communication stability. -
Plant-Wide Application Extension
Seamlessly interfaces with logistics equipment, FMS, and AMR dispatch systems.
Field-Proven by International Standards, Driving Operational Excellence
-
Automation Capability
Achieving automated process data exchange to boost automation capability by 66%.
-
Production Efficiency
Utilizing real-time data to optimize line balancing, increasing overall throughput by 33%. -
Changeover Time
Centralizing information for automated reporting, reducing changeover management time by 30%.

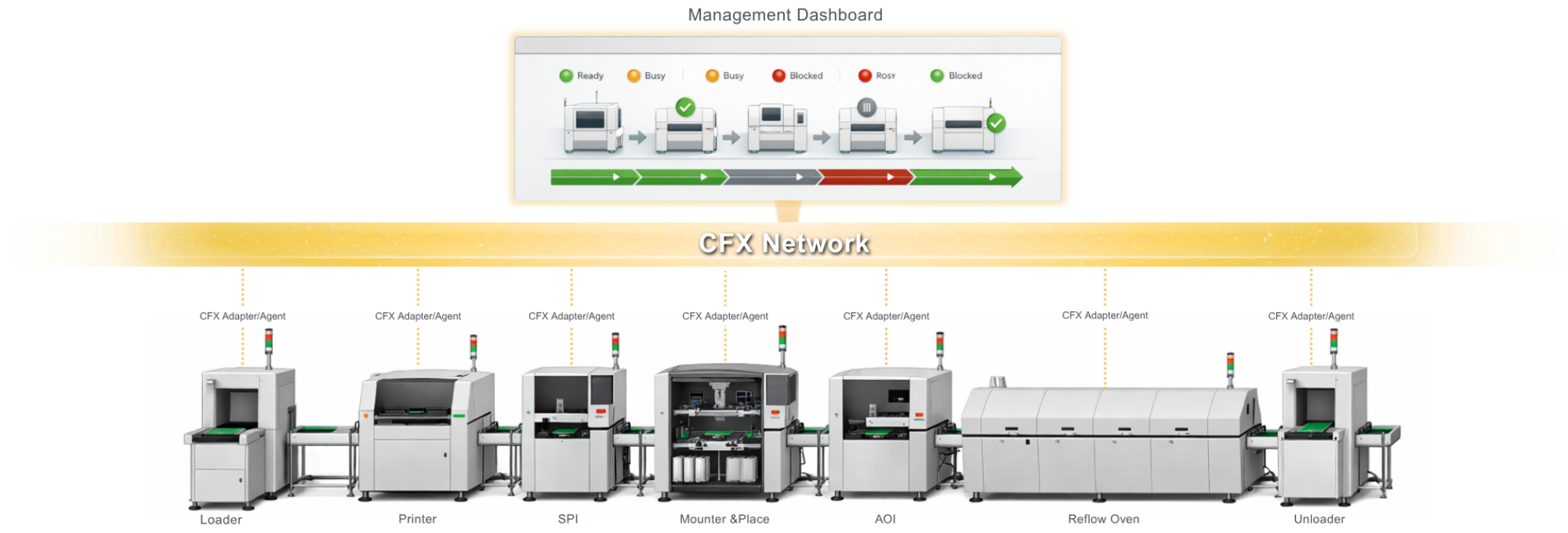

CFX Data Exchange Architecture
Technical Specification Highlights
- Transmission Protocol: AMQP v1.0 (Highly secure message queuing).
- Data Format: JSON structured data.
- Encryption Mechanism: End-to-end encryption and security validation, featuring bank-grade security levels.
- Communication Mode: Supports broadcasting, peer-to-peer (P2P), and multi-terminal subscription.
- Scalable Architecture: Modular topic and message architecture supporting Plug-and-Play (PnP).
- Complementarity: Capable of bi-directional integration with IPC-Hermes-9852, fulfilling both horizontal (M2M) and vertical (Machine-to-MES) communication.
Application Scenarios
-
SMT Smart Line
Full-line data interoperability across Loader, Printer, SPI, Mounter, AOI, and Reflow ovens. -
Equipment Monitoring & Maintenance
Real-time feedback of equipment operational status and anomaly alarms to elevate OEE. -
Smart Factory Integration
Integration with MES systems to establish a plant-wide data hub.
Benefits of Adopting CFX Standard
Data Interoperability
Intelligent Decision-Making
Comprehensive Traceability
High-Efficiency Collaboration: Elevating SMT Line Intelligence with IPC-CFX
Empowering Strategic Transformation through Comprehensive Integration
Sunjsong provides expert system integration services, seamlessly merging EMS, AI, IoT, and edge computing. We empower enterprises to implement intelligent applications and achieve cross-domain synergy, creating high-efficiency, visualized environments that drive strategic value and informed decision-making.
